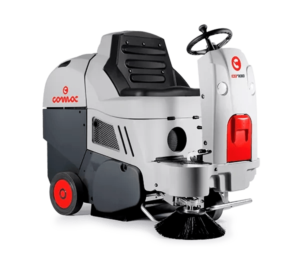

CS700
CS700 and CS800 is a range of industrial ride-on sweepers devised to offer maximum user-friendliness and great comfort for the operator. Extremely robust and reliable, CS700 and CS800 floor sweepers were designed to offer great productivity and effective, affordable cleaning.
CS700 and CS800 floor sweepers are available battery-powered or with gasoline engine, and with two different working widths to meet all cleaning requirements.
Extremely effective also in the presence of coarse dirt, these sweepers are suitable for cleaning indoor and outdoor floors and surfaces in industrial environments, warehouses, shopping areas, car parks and in the public, automotive and transport sectors and areas measuring up to 15,000 sq.m.
CS700
Technical Data
Features
CS700
Technical Data
- Theoretical productivity (up to sqm/h) 6300
- Working width with central brush (mm) 700
- Working width with side brush (mm)875
- Working width with two side brushes (mm) 1050
- Central brush (Ø/mm) Ø285×678
- Side brush (mm) 400
- Standard filter (format) Panel
- Standard filter (material) Paper
- Filtering surface (sq.m.) 4
- Debris hopper capacity (l) 60
- Type of drainage Manual
- Supply/traction (V) Battery 24V/ aut.
- Machine dimensions (l x h x w) (mm) 1600x1310x940
Features
- Two types of power supply: battery-powered or gasoline to meet different cleaning requirements
- Maneuverable and handy
- Two types of unloading, manual or automatic, able to unload at up to 1.25 m above the ground
- Available upon request in versions with two side brushes
- Intuitive driving and simple controls
- In the battery-powered version, the various functions (brushes, traction and suction) are activated by specific motors
- The autonomy of the battery-powered version can be up to 4 hours, or 20,000 sq.m. cleaned, emission free
- Unlimited autonomy for version with internal combustion engine
- Electric filter shaker: even more convenient and effective filter cleaning
- Vacuum bypass to clean the filter or work on damp surfaces
- Floating, self-adjusting, cusp shape central brush (hydraulic movement in combustion version), always in contact with the ground
- Brush system that allows you to always maintain constant performance, even if the brush wears out, and thus helps decrease energy consumption
- On the battery-powered version, the whole battery/motor compartment is protected against dust penetration, with maximum accessibility for the electrical system, positioned in a protected area in the front part of the machine
- The versions with internal combustion engine (CS700 H and CS800 H) are equipped with a complete hydraulic system and have no electronic circuit boards to increase reliability and ensure the utmost peace of mind when working in particularly dirty conditions
- Vacuumed and filtered air comes out through the rear grille positioned in a very high area. In this way, the dust deposited on the surface around the machine is not lifted, guaranteeing excellent cleaning results
- The CS700/CS800 sweepers are available with panel or fabric pocket filter
- Panel filter: for standard applications, easily replaced with no need for tools
- Fabric filter (optional): excellent filtering results also in environments with presence of very fine dust
- Extremely easy to replace filtering system so that the sweeper can be adapted to different work environments
- Central brush can be taken off without any tools
- All the components are easy to access, to carry out checks and maintenance practically and quickly
- The battery-powered versions can have an on-board battery charger
- LED headlights as standard to make the sweeper more visible when operating and improve visibility
- Blinking light kit to increase safety by indicating that the machine is passing
- Overhead guard kit to protect the operator
- Emergency button to immediately stop the machine and all active functions in an emergency
- ECO Mode: for battery versions only one button to reduce noise level and energy consumption and increase the sweeper’s autonomy
- Stop&Go: when the machine is temporarily idle, the brushes of CS700 B and CS800 are halted so as to optimize consumption and reduce waste
- CFC – Comac Fleet Care: fleet management system that allows remote control of machine status
