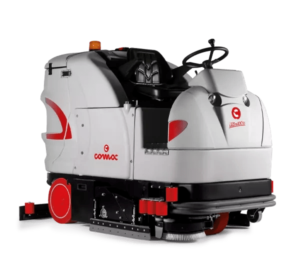

Ultra 100/120
Ultra 100/120 is a ride-on floor scrubber with a robust, extremely powerful design, for working in large industrial areas.
Ultra 100 and Ultra 120 offer exceptional productivity and performance thanks to the option of customizing cleaning operations in order to remove even the most stubborn dirt. The brush head is made with a powerful central motor to allow this scrubber dryer to achieve excellent cleaning results even in the toughest environments. Ultra 100-120 is suitable for working in the industrial sector, logistics centers, stations and airports.
Thanks to the perfect blend of productivity, performance and reliability, Ultra 100-120 is the ideal solution for maintenance and heavy duty cleaning even in the case of very heavy dirt on medium and large floors up to 20000 sq.m.
- Theoretical productivity (up to sqm/h) 8640
- Scrubbing width (mm) 970
- Brushes, quantity and type 2 – Cylindrical
- Brush Ø (mm) Ø150×980 (front) Ø280×865 (rear)
- Pressure on the brush (min – max) (kg) 55
- Solution tank (l) 280
- Recovery tank (l) 285
- Supply/traction (V) 36/aut.
- Autonomy up to (h) 5
- Machine dimensions (l x h x w) (mm) 2075x1569x1192
- Squeegee width (mm) 1265
- GVW (Gross Vehicle Weight) (kg) 1200
- Sound pressure level (ISO 11201 – dB (A)) <70
- Two different brush head types to get optimal results on any floor: scrubbing or scrubbing-sweeping
- Two different types of power supply: available both battery-powered and LPG-Gasoline-powered with 9.5 Kw Honda combustion engine that makes it possible to scrub areas of more than 20-25,000 sq.m.
- Intuitive driving and simple controls
- Working program selector enables the operator to manually select the type of activity to be carried out
- Comfortable position for operator offering wide visibility and full control of all machine functions
- Excellent autonomy, thanks to the significant tank capacity
- High brush pressure that can be adjusted manually according to the type of dirt to clean
- Perfect drying, thanks to the power of the dual vacuum motor and to the presence of the vacuum system on the scrubbing brush head too
- Ultra 100 has a brush head equipped with cylindrical brushes of different diameters, to increase the effectiveness of the two scrubbing and sweeping functions, thanks to which it is possible to collect even small solid residuals and to convey them in a debris hopper.
- Possibility of cleaning along walls: Ultra 100 is equipped with a side scrubbing brush while the brush head of Ultra 120 moves laterally up to 15 cm
- Fitted as standard with an antiskid wheel and with a speed reduction device in curves, traction with A.C. control and carbon brushless
- The “V”-layout of the side splash guard system on the brush head was designed to convey the detergent solution to the center: this made it possible to fit a compact dimensions squeegee able to guarantee perfect drying even on bends
- Maximum accessibility to components for easier maintenance
- CDS – Comac Dosing System: the system allowing the water and the detergent to be measured out separately
- Stop&Go: when the machine is temporarily idle, the solution flow is interrupted and the brushes are halted so as to optimize consumption and reduce waste
