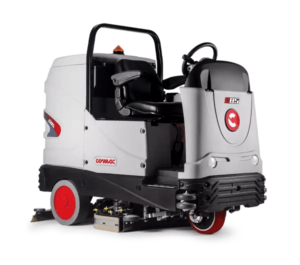

C85
C85 is a ride-on industrial floor scrubber in Comac’s C range. C85 is a scrubbing machine featuring the most innovative technology, characterized by robust design and an intelligent soul, giving the operator the ability to interact with the machine to make the most of its functions with a view to optimizing operation times and reducing costs.
Innovative technology also means excellent performance, great power and maximum safety, without giving up on user-friendliness, making C85 an extremely versatile scrubber dryer. The configurations, the options and the accessories available provide an extraordinary opportunity to configure the C85 with maximum flexibility, making it able to work in any environment and in the presence of any type of dirt, such as in production sites, warehouses, shopping centers, supermarkets and logistics centers.
Thanks to the perfect blend of productivity, performance and reliability, C85 is suitable for maintenance and heavy duty cleaning even in the case of very heavy dirt on medium and large floors up to 12000 sq.m.
C85
Technical Data
Features
C85
Technical Data
- Theoretical productivity (up to sqm/h) 6800
- Scrubbing width (mm) 850
- Brushes, quantity and type 2 – Disc
- Brush Ø (mm) 430
- Pressure on the brush (min – max) (kg) 150
- Solution tank (l) 180
- Recovery tank (l) 180
- Supply/traction (V) 36/aut.
- Autonomy up to (h) 4
- Machine dimensions (l x h x w) (mm) 1917x1630x961
- Squeegee width (mm) 1105
- GVW (Gross Vehicle Weight) (kg) 1145
- Sound pressure level (ISO 11201 – dB (A)) <70
Features
- Two configurations available. The Essential configuration makes C85 a simpler, more essential machine, indispensable for all cleaning operations which are primarily focused on excellent performance. C85 in the Bright configuration, meanwhile, is richer, capable of offering optimal performance combined with the maximum levels of existing technology for scrubbing machines in this category.
- Two different brush head types to get optimal results on any floor: scrubbing or scrubbing-sweeping
- Intuitive driving and simple controls for both Essential and Bright configurations
- Working position raised and decentralized to improve visibility during cleaning operations
- The steering wheel, new generation drive pedal and seat with super comfortable armrests ensure maximum comfort for the operator even when the scrubbing machine is used for long periods
- Dual vacuum motor as standard in Bright configuration to ensure perfect drying in a single passage, with no marks or residue
- Front and rear LED headlights as standard to guarantee maximum visibility
- Front motorwheel in AC with antiskid and non-marking wheel to ensure maximum adherence on any type of floor, even when wet
- Steel frame coated with cataphoretic paint which provides it with remarkable resistance to corrosion
- Working program selector enables the operator to manually select the type of activity to be carried out
- The Bright configuration is equipped with a color touch screen display to make it even easier and more intuitive for the operator to use the scrubber dryer
- The rear view camera of the Bright configuration allows the operator to check for obstacles when reversing
- Possibility to install anti-collision sensor on the rear part of the floor scrubber to further increase safety
- Continuous sensor positioned on the steering wheel axle that recognizes the exact position of the front motorwheel, automatically reducing the speed in accordance with requirements, so that C85 can also move forward in a fluid manner, without interruption
- Brush head made of steel, to provide robustness and reliability over time
- Solution level sensor in Bright configuration allows automatic awareness of the level of solution in the tank
- Courtesy lights pack as standard to increase the visibility of the parts where the operator may be required to perform maintenance
- Parts requiring daily maintenance distinguished by yellow color
- Hydraulic brake which acts on the rear wheels, thus increasing safety and comfort
- Electric brake installed on the front motorwheel that functions as an emergency brake or parking brake
- Moving scrubbing brush head: on activating a simple control, the brush head comes out to the right to reach the dirt that settles up against walls
- C85 BS is equipped with scrubbing sweeping brush head: particularly suitable for scrubbing rough floors or with small solid debris. The side brush is available as an optional accessory
- Emergency button to immediately stop the machine and all active functions in an emergency
- ECO Mode: only one button to reduce noise level and energy consumption and increase the floor scrubber’s autonomy
- CDS – Comac Dosing System: the system allowing the water and the detergent to be measured out separately
- CSF – Constant solution flow: the distribution system that ensures correct delivery of solution on both disc brushes, thereby improving effectiveness even at low flow rates
- PM – Pressure Monitoring: system for monitoring the pressure on the brushes
- IPM – Intelligent Pressure Monitoring: the Bright configuration can be equipped with this sensor, which can provide a constant and accurate measurement of the pressure exerted on the brushes
- FFS – Fast Filling System: system for filling the clean water tank, even letting the operator perform other activities while the tank quickly fills up. When the tank is full, the water flow stops automatically.
- Stop&Go: when the machine is temporarily idle, the solution flow is interrupted and the brushes are halted so as to optimize consumption and reduce waste
- CFC – Comac Fleet Care: fleet management system that allows remote control of machine status
- ST – Spray Tool: spray gun for effective cleaning even in those areas the scrubbing machine is unable to reach and for cleaning the tanks
- ST – Suction Tool: vacuum wand for effective cleaning even in those areas the scrubbing machine is unable to reach
- CED – Comac Electrostatic Disinfector: this technology means that the floor scrubber can scrub, dry and spray a sanitizing solution at the same time.
